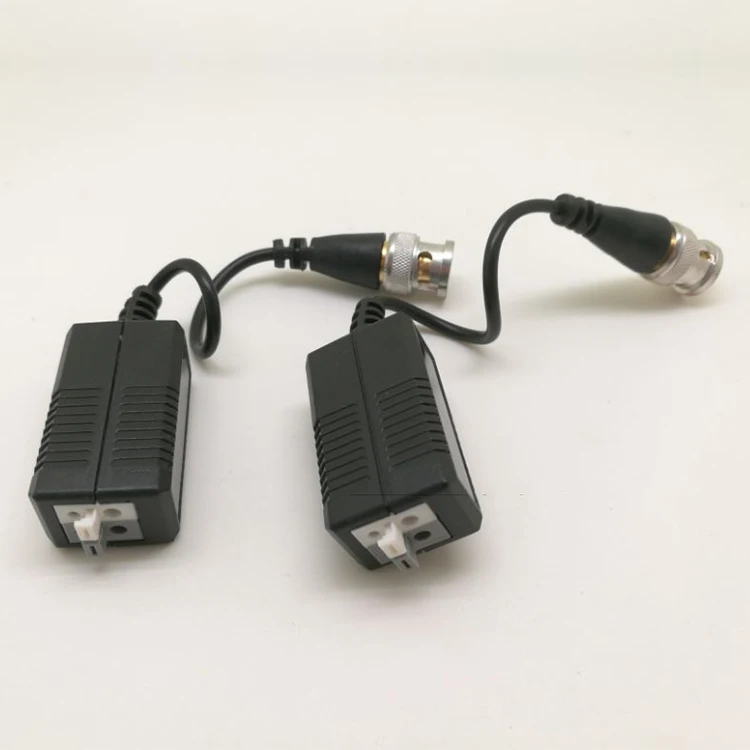

• The CF-401 video balun is a passive (non-amplified) device that allows the transmission of real-time CCTV HD video signal via cost-effective Unshielded Twisted Paired (UTP) cable. The CF-401 is compatible with all HD-TVI, HD-CVI, AHD and CVBS analog cameras.
• The CF-401 has a mini-coax pigtail lead which allows quick mounting onto fixed cameras, allows in-camera mounting in most dome cameras and allows flexible connection with DVR. Reliable Screw terminals block connection,the CF-401 eliminates costly and bulky coaxial cable.
Properties
Transmission signal
1 channel
Transmission distance
AHD/CVI:400m(max), TVI/CVBS:300m(max)
Category Type
UTP CAT5/5E/6
Video transmission Properties and Port
Coaxial video connector
BNC-Male
Twisted-pair Video Connector
Push-terminal
Compatible Format
CVI/ TVI/ AHD/ CVBS
Resolution
720P/ 960P/ 1080P/ 3MP/ 4MP/ 5MP/ 8MP
Anti-interference
>60db
Impedance
BNC Male
75 Ohms
UTP Cable
100 Ohms
Qty/Ctn
250 pairs
Carton size
58*48*25 cm
Carton weight
15.5 kg
Company Profile
Trade Show
Packaging
Certifications
FAQ
Q1:Are you a trading company or manufacture? A1:YUXUN cable is a professional manufacturer since 1996, so we can provide perfect solution on cables and can control the quality from the first procedure to the last.
Q2:What is your delivery time? A2:Normally,our delivery time is 15-20days after get your deposit. .
Q3:What is your MOQ? A3:Usally,the MOQ of our general coaxial cable product is 15-20KM,but every inquiry will be considered individually.
Q4:What is your general payment term? A4: Normally, our payment term is 30% deposit by TT when order confirmed, and 70% balanced payment by TT or LC at sight before delivery.
Q5: Can you produce the specfic cable strictly according to clients' requirement? A5: Yes, we have professional technical team, so we can do ODM for customers.
Q6: Where you are located? A6: We located in the city of ZHUHAI, quite near to HK/Macao/Shenzhen/Guangzhou.
If you intersting in our cables, pls send the enquiry now!!! Free sample will be deliveried to your address soon!!
